Dimmable LED Driver

The dimmable LED driver is intended to be used as a lamp control gear. It is suitable for LED spot lights, LED ceiling lights and other LED lamps that need a changeable brightness. It makes use of a dimming circuit to adjust its output power in a smooth way without flicker, and the output power could be adjusted at different levels.

Dimmable 0-10V LED Driver for EU (PWM) Dimmable 0-10V LED Driver for General Purpose (PWM) Dimmable LED Driver: RF Control Driver with CCT Triac Dimmable LED Driver with Low Ripple (ELP Series) Dimmable Constant Voltage LED Driver DALI Dimmable LED Driver with Low Ripple

Standards
Magnetic Emission: EN55015
Harmonic: EN61000-3-2
Flicker: EN61000-3-3
Immunity: EN61547
Safety: IEC61347-1, IEC61347-2-13, IEC60598-1, IEC60598-2-6

Technical Parameters

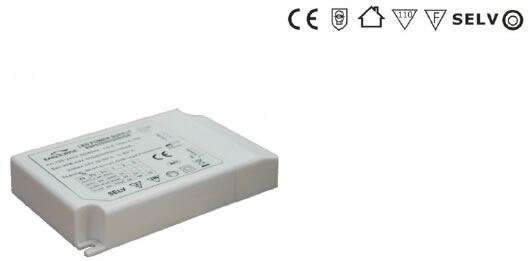

1. Dimmable 0-10V LED Driver for EU (PWM)

Features
Installation: Built-in
Power supply connection: Terminal block
Load connection: Series connection
Protections: Short circuit protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13

10W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP010C0200SHD4 220-240VAC 50/60Hz DC220mA 25-50V 50°C 75°C ≥76% <0.5W ≥0.9 106 68 22
… … … … … … … … … … … …
EDP010C0700SHD4 220-240VAC 50/60Hz DC700mA 8-14.5V 50°C 75°C ≥76% <0.5W ≥0.9 106 68 22
15W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP015C0200SHD4 220-240VAC 50/60Hz DC200mA 37.5-75V 50°C 80°C ≥80% <0.5W ≥0.9 106 68 22
EDP015C0250SHD4 220-240VAC 50/60Hz DC250mA 30-60V 50°C 80°C ≥80% <0.5W ≥0.9 106 68 22
… … … … … … … … … … … …
EDP015C1000SHD4 220-240VAC 50/60Hz DC1000mA 8-15V 50°C 80°C ≥80% <0.5W ≥0.9 106 68 22
25W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP025C0350SHD4 220-240VAC 50/60Hz DC350mA 36-71.5V 50°C 85°C ≥82% <0.5W ≥0.9 106 68 22
… … … … … … … … … … … …
EDP025C1000SHD4 220-240VAC 50/60Hz DC1000mA 12.5-25V 50°C 85°C ≥82% <0.5W ≥0.9 106 68 22
30W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP030C0350SHD4 220-240VAC 50/60Hz DC350mA 43-86V 50°C 85°C ≥88% <0.5W ≥0.9 124 80 22
EDP030C0400SHD4 220-240VAC 50/60H DC400mA 37.5-75V 50°C 85°C ≥87% <0.5W ≥0.9 124 80 22
… … … … … … … … … … … …
EDP030C1000SHD4 220-240VAC 50/60Hz DC1000mA 15-30V 50°C 85°C ≥85% <0.5W ≥0.9 124 80 22
2. Dimmable 0-10V LED Driver for General Purpose (PWM)

Features
Installation: Built-in
Power supply connection: Terminal block
Load connection: Series connection
Protection: Short circuit protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13

25W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP025C0350SHD4 100-240VAC 50/60Hz DC350mA 36-72V 50°C 85°C ≥82% <0.5W ≥0.9 106 68 22
EDP025C0400SHD4 100-240VAC 50/60Hz DC400mA 31-62.5V 50°C 85°C ≥82% <0.5W ≥0.9 106 68 22
… … … … … … … … … … … …
EDP025C1000SHD4 100-240VAC 50/60Hz DC1000mA 12.5-25V 50°C 85°C ≥80% <0.5W ≥0.9 106 68 22
30W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP030C0350SHD4 100-240VAC 50/60Hz DC350mA 43-86V 50°C 85°C ≥83% <0.5W ≥0.9 124 80 22
EDP030C0400SHD4 100-240VAC 50/60Hz DC400mA 37.5-75V 50°C 85°C ≥82% <0.5W ≥0.9 124 80 22
… … … … … … … … … … … …
EDP030C1000SHD4 100-240VAC 50/60Hz DC1000mA 15-30V 50°C 85°C ≥82% <0.5W ≥0.9 124 80 22
50W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP050C0500SHD4 100-240VAC 50/60Hz DC500mA 50-100V 50°C 85°C ≥87% <0.5W ≥0.9 124 80 22
EDP050C0550SHD4 100-240VAC 50/60Hz DC550mA 45.5-91V 50°C 85°C ≥86% <0.5W ≥0.9 124 80 22
… … … … … … … … … … … …
EDP050C1200SHD4 100-240VAC 50/60Hz DC1200mA 21-42V 50°C 85°C ≥85% <0.5W ≥0.9 124 80 22

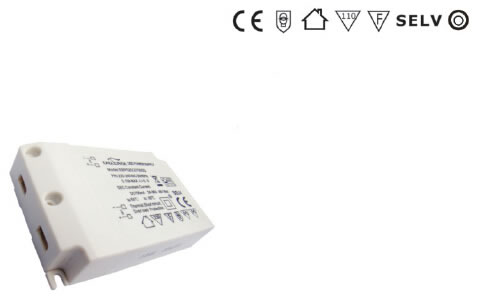

3. Dimmable LED Driver: RF Control Driver with CCT

Features
Installation: Built-in
Power supply connection: Terminal block
Load connection: Series connection
Protections: Short circuit protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13
Control Mode: RF, multi-current output

25W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP025C0350SSD5 220-240VAC 50/60Hz DC350mA 35-71.5V 50°C 80°C ≥83% <0.5W ≥0.9 106 68 22
EDP025C0300SSD5 220-240VAC 50/60Hz DC300mA 35-71.5V 50°C 80°C ≥83% <0.5W ≥0.9 106 68 22
… … … … … … … … … … … …
EDP025C0200SSD5 220-240VAC 50/60Hz DC200mA 35-71.5V 50°C 80°C ≥83% <0.5W ≥0.9 106 68 22
35W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP035C0700SSD5 220-240VAC 50/60Hz DC700mA 25-50V 50°C 85°C ≥85% <0.5W ≥0.9 124 80 22
EDP035C0650SSD5 220-240VAC 50/60Hz DC650mA 25-50V 50°C 85°C ≥85% <0.5W ≥0.9 124 80 22
EDP035C0600SSD5 220-240VAC 50/60Hz DC600mA 25-50V 50°C 85°C ≥84% <0.5W ≥0.9 124 80 22
… … … … … … … … … … … …
EDP035C0500SSD5 220-240VAC 50/60Hz DC500mA 25-50V 50°C 85°C ≥83% <0.5W ≥0.9 124 80 22
50W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP050C0700SSD 5 220-240VAC 50/60Hz DC700mA 35-71.5V 50°C 85°C ≥85% <0.5W ≥0.9 124 80 22
EDP050C0650SSD5 220-240VAC 50/60Hz DC650mA 35-71.5V 50°C 85°C ≥85% <0.5W ≥0.9 124 80 22
EDP050C0600SSD5 220-240VAC 50/60Hz DC600mA 35-71.5V 50°C 85°C ≥84% <0.5W ≥0.9 124 80 22
… … … … … … … … … … … …
EDP050C0500SSD5 220-240VAC 50/60Hz DC500mA 35-71.5V 50°C 85°C ≥83% <0.5W ≥0.9 124 80 22

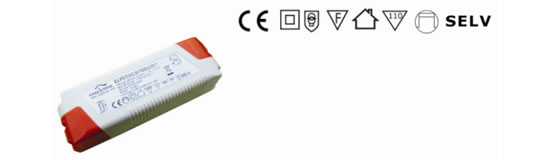

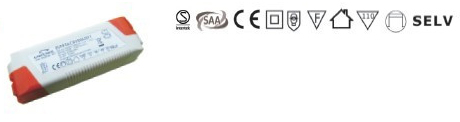

4. Triac Dimmable LED Driver with Low Ripple (ELP Series)

Features
Installation: Independent
Supply connection: Terminal block
Load connection: Series connection
Protection: Short circuit protection, thermal protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

50W (Current increment: 50mA)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP050C0500LSD1 220-240VAC 500mA 25-500mA 67-100V 50°C 85°C ≥87% <1W ≥0.9 157 54 36
ELP050C0550LSD1 220-240VAC 550mA 28-550mA 60-91V 50°C 85°C ≥86% <1W ≥0.9 157 54 36
… … … …
ELP050C1400LSD1 220-240VAC 1400mA 75-1400mA 24-36V 50°C 85°C ≥84% <1W ≥0.9 157 54 36
60W (Current increment: 100mA)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP060C0600LSD1 220-240VAC 600mA 30-600mA 67-100V 50°C 85°C ≥87% <2W ≥0.9 166 50 33
ELP060C0650LSD1 220-240VAC 650mA 33-650mA 61-92.5V 50°C 85°C ≥87% <2W ≥0.9 166 50 33
… … … … … … … … … … … … …
ELP060C1400LSD1 220-240VAC 1400mA 70-1400mA 28-43V 50°C 85°C ≥85% <2W ≥0.9 166 50 33

15W (Current increment: 50mA)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP015C0300LSD1 220-240VAC 300mA 15-300mA 34-50V 50°C 80°C ≥85% <1W ≥0.9 115 45 27.5
ELP015C0350LSD1 220-240VAC 350mA 18-350mA 28-43V 50°C 80°C ≥85% <1W ≥0.9 115 45 27.5
… … … … … … … … … … … … …
ELP015C0700LSD1 220-240VAC 700mA 35-700mA 14-21.5V 50°C 80°C ≥84% <1W ≥0.9 115 45 27.5

Features
Installation: Independent
Supply connection: Terminal block
Load connection: Series connection
Protection: Short circuit protection, thermal protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: IEC61347-1, IEC61347-2-13, IEC60598-1, IEC60598-2-6

6W (Current increment: 50mA)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP006C0200LSD1 220-240VAC 50/60Hz 200mA 10-200mA 20-30V 50°C 80°C ≥76% <1W ≥0.9 111 42 24
ELP006C0250LSD1 220-240VAC 50/60Hz 250mA 12.5-250mA 16-24V 50°C 80°C ≥76% <1W ≥0.9 111 42 24
… … … … … … … … … … … … …
ELP006C0700LSD1 220-240VAC 50/60Hz 700mA 35-700mA 5.7-8.6V 50°C 80°C ≥74% <1W ≥0.9 111 42 24
9W (Current increment: 50mA)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP009C0200LSD1 220-240VAC 200mA 10-200mA 30-45V 50°C 80°C ≥81% <1W ≥0.9 111 42 24
ELP009C0250LSD1 220-240VAC 250mA 12-250mA 24-36V 50°C 80°C ≥81% <1W ≥0.9 111 42 24
… … … … … … … … … … … … …
ELP009C0700LSD1 220-240VAC 700mA 35-700mA 8.6-13V 50°C 80°C ≥76% <1W ≥0.9 111 42 24
12W (Current increment: 50mA)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP012C0200LSD1 220-240VAC 200mA 10-200mA 40-60V 50°C 80°C ≥84% <1W ≥0.9 111 42 24
ELP012C0250LSD1 220-240VAC 250mA 12-250mA 32-48V 50°C 80°C ≥83% <1W ≥0.9 111 42 24
… … … … … … … … … … … … …
ELP012C0700LSD1 220-240VAC 700mA 35-700mA 11.5-17.5V 50°C 80°C ≥81% <1W ≥0.9 111 42 24

Features
Installation: Independent
Power supply connection: Terminal block
Load connection: Series connection
Protection: Short circuit protection, thermal protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

20W(Current increment: 50mA)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP020C0350LSD1 220-240VAC 350mA 18-350mA 34-58V 50°C 80°C ≥85% <1W ≥0.9 132 45 24
ELP020C0400LSD1 220-240VAC 400mA 20-400mA 30-50V 50°C 80°C ≥84% <1W ≥0.9 132 45 24
… … … … … … … … … … … … …
ELP020C1400LSD1 220-240VAC 1400mA 75-1400mA 8.5-14V 50°C 80°C ≥82% <1W ≥0.9 132 45 24
30W (Current increment: 100mA)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP030C0350LSD1 220-240VAC 350mA 18-350mA 57-86V 50°C 85°C ≥88% <2W ≥0.9 156 50 33
ELP030C0400LSD1 220-240VAC 400mA 20-400mA 50-75V 50°C 85°C ≥84% <2W ≥0.9 156 50 33
… … … … … … … … … … … … …
ELP030C1400LSD1 220-240VAC 1400mA 75-1400mA 14-21.5V 50°C 85°C ≥85% <2W ≥0.9 156 50 33
36W(Current increment: 100mA) (Ripple Current<±20%)
Model Input Voltage Constant Current Adjustable Current Range Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
ELP036C0500LSD1 220-240VAC 500mA 25-500mA 40-70V 50°C 80°C ≥86% <2W ≥0.9 156 50 33
ELP036C0600LSD1 220-240VAC 600mA 30-600mA 34-60V 50°C 80°C ≥86% <2W ≥0.9 156 50 33
… … … … … … … … … … … … …
ELP036C1000LSD1 220-240VAC 1000mA 75-1500mA 20-35V 50°C 80°C ≥84% <2W ≥0.9 156 50 33

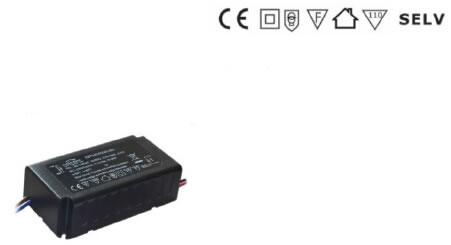

5. Dimmable Constant Voltage LED Driver

Features
Installation: Built-in
Power supply connection: Lead wire
Load connection: Parallel connection
Dimmable type: Leading-edge (triac), or trailing-edge
Protection: Short circuit protection, thermal protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13

Model Input Voltage Constant Current Adjustable Current Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EBP030V0120LSD1 220-240VAC 50/60Hz 12VDC 8-12VDC 50°C 85°C ≥82% <2W ≥0.9 95 54 33
EBP030V0240LSD1 220-240VAC 50/60Hz 24VDC 14-24VDC 50°C 85°C ≥85% <2W ≥0.9 95 54 33

Model Input Voltage Constant Current Adjustable Current Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EBP040V0120LSD1 220-240VAC 50/60Hz 12VDC 8-12VDC 50°C 85°C ≥82% <2W ≥0.9 111 60 33
EBP040V0240LSD1 220-240VAC 50/60Hz 24VDC 14-24VDC 50°C 85°C ≥85% <2W ≥0.9 111 60 33

6. DALI Dimmable LED Driver with Low Ripple

Features
Installation: Built-in
Power supply connection: Terminal block
Load connection: Series connection
Protection: Short circuit protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13

25W (Current increment: 50mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP025C0350SHD8 100-240VAC 50/60Hz DC350mA 48-72V 50°C 80°C ≥88% <1W ≥0.9 106 67.5 22
EDP025C0500SHD8 100-240VAC 50/60Hz DC500mA 30-50V 50°C 80°C ≥87% <1W ≥0.9 106 67.5 22
EDP025C0600SHD8 100-240VAC 50/60Hz DC600mA 28-42V 50°C 80°C ≥87% <1W ≥0.9 106 67.5 22
… … … … … … … … … … … …
EDP025C1000SHD8 100-240VAC 50/60Hz DC1000mA 16-25V 50°C 80°C ≥85% <1W ≥0.9 106 67.5 22
35W (Current increment: 100mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP035C0350SHD8 100-240VAC 50/60Hz DC350mA 66-100V 50°C 80°C ≥88% <0.5W ≥0.9 124 80 22
EDP035C0500SHD8 100-240VAC 50/60Hz DC500mA 46-70V 50°C 80°C ≥88% <0.5W ≥0.9 124 80 22
EDP035C0600SHD8 100-240VAC 50/60Hz DC600mA 40-60V 50°C 80°C ≥87% <0.5W ≥0.9 124 80 22
… … … … … … … … … … … …
EDP035C1200SHD8 100-240VAC 50/60Hz DC1200mA 20-30V 50°C 80°C ≥86% <0.5W ≥0.9 124 80 22
50W (Current increment: 100mA)
Model Input Voltage Constant Current Operating Voltage Range Ta Tc Typical Efficiency Standby Power Power Factor Dimensions
L(mm) W(mm) H(mm)
EDP050C0700SHD8 100-240VAC 50/60Hz DC700mA 47-71.5V 50°C 85°C ≥89% <1W ≥0.9 107.5 76 30
EDP050C0800SHD8 100-240VAC 50/60Hz DC800mA 41-62.5V 50°C 85°C ≥88% <1W ≥0.9 107.5 76 30
EDP050C0900SHD8 100-240VAC 50/60Hz DC900mA 37-55.5V 50°C 85°C ≥88% <1W ≥0.9 107.5 76 30
… … … … … … … … … … … …
EDP050C1500SHD8 100-240VAC 50/60Hz DC1500mA 22-33.5V 50°C 85°C ≥86% <1W ≥0.9 107.5 76 30

For more information, please refer to the following PDF.

Dimmable LED Driver

Related Names
LED Dimmer Controller | Variable LED Power Supply | LED Ceiling Light Controller

Related products
Inquiry Form
